Наименование |
Кол-во
|
Цена
|
|
|---|---|---|---|
| MJ15023 | 364 | 150.54 руб. | |
Параметр |
Значение |
|---|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 16A |
| Voltage - Collector Emitter Breakdown (Max) | 200V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 3.2A, 16A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 8A, 4V |
| Power - Max | 250W |
| Frequency - Transition | 4MHz |
| Тип монтажа | Шасси |
| Корпус (размер) | TO-204AA, TO-3 (2 Leads + case) |
| Корпус | TO-3 |
Наименование |
Кол-во
|
Цена
|
|
|---|---|---|---|
| MJ15025 | 352 | 188.18 руб. | |
|

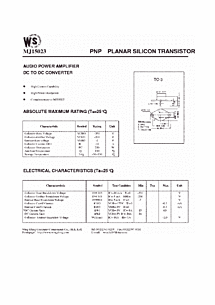

MJ15023 Pnp Planar Silicon Transistor
Производитель:
|
||
 |
 |
 |
 |
 |
 |
